9-12393-408
SOBRE PEDIDO,SUJETO A CAMBIO

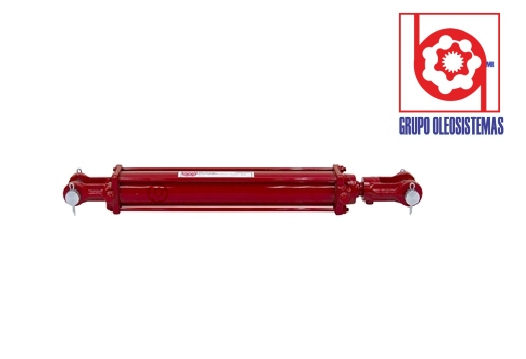

CILINDRO DE 2" x 14" x 1.125" DA HYD CYL
MARCA LION double acting hydraulic cylinder. Numbers on cylinder 648504.
SPECIFICATIONS
Double Acting
Bore x Stroke 2" x 14"
Barrel Thickness 0.10"
Gland Retainer Tie-rod
Pressure 2500 PSI
Rod Dia. 1.125"
Ports 3/8" NPT
Retracted Length 24.25"
Gland Face to Rod Pin Center 4.83"
Shpg. 18 lbs.
END MOUNTINGS
Rod End Clevis
Outside Width 2.42"
Inside Width 1.19"
Throat Depth 2.11"
Pin Hole 1"
Base End Clevis
Outside Width 2.39"
Inside Width 1.19"
Throat Depth 2.11"
Pin Hole 1"
